The PV combiner box means that the user can connect a certain number of photovoltaic cells with the same specifications in series to form a photovoltaic string, and then connect several photovoltaic strings in parallel to the PV combiner box. In this article, the PV combiner box Give a certain level of introduction, I hope it will be helpful to you.

  • Features of PV combiner box.

  • All of the company's PV combiner box products.

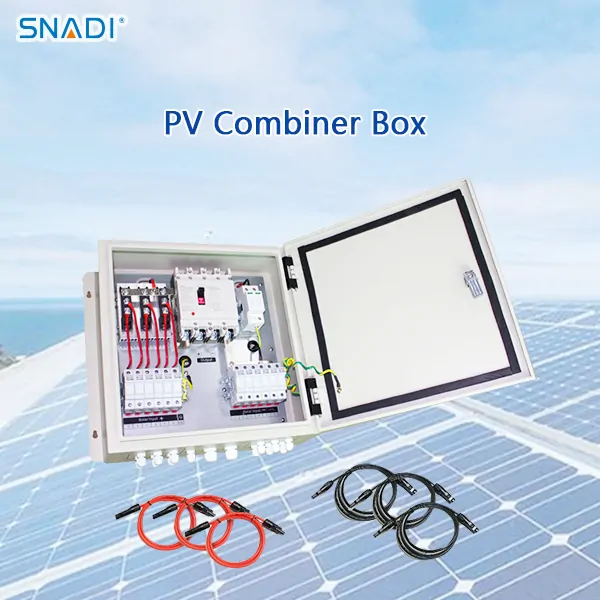

Features of PV combiner box

Features of PV combiner box.

1. The PV combiner box can be connected to multiple solar photovoltaic arrays at the same time, and the maximum current of each path can reach 16A, which can meet the needs of different users;

2. The PV combiner box is equipped with a solar photovoltaic DC high-voltage lightning protection device, and both the positive and negative electrodes have dual lightning protection functions;

3. The PV combiner box adopts professional DC high voltage circuit breaker, and the DC withstand voltage value is not less than DC1000V, which is safe and reliable;

4. Lightning counting function, convenient to understand the intrusion and frequency of lightning disasters;

5. The PV combiner box has a working status indicator, which is convenient for observing the working status;

6. The PV combiner box is equipped with high-voltage-resistant DC fuses and circuit breakers, a total of two-level safety protection devices;

7. The PV combiner box can be equipped with sensors and monitoring display modules to measure and monitor the current of each channel according to needs, and can record and display the operating status remotely, without the need to go to the scene (optional);

8. The protection level of the PV combiner box reaches IP65, which meets the requirements of outdoor installation;

9. The installation and maintenance of the PV combiner box is simple, convenient, and has a long service life.

10. The junction box provides protection for the string in a centralized photovoltaic system;

11. The PV combiner box adopts Bussmann-PV photovoltaic special fuse protection to ensure rapid response to errors and alarms;

12. Up to 10 wires are installed in parallel in the same junction box, and fuse protection devices are installed on the positive and negative poles.

13. The PV combiner box can be connected to the cable of the photovoltaic panel in a variety of ways

All of the company's PV combiner box products.

Foshan SNAT Energy Electric Technology Co., Ltd. was established in 2004. It uses solar energy as the main energy source and adopts high-efficiency fifth IGBT technology. It has low operating costs, one-time investment, and long-term benefits. The company's main products are: solar generators, solar inverters, solar charge controllers and PV combiner boxes. For example, the PV combiner box includes a photovoltaic array combiner box.

If you are interested in our company's PV combiner box, you can get in touch with us to communicate, we will provide you with the best PV combiner box products and services. I wish you success in your work and good health.
