6KW
SNADI
MAIN FEATURES

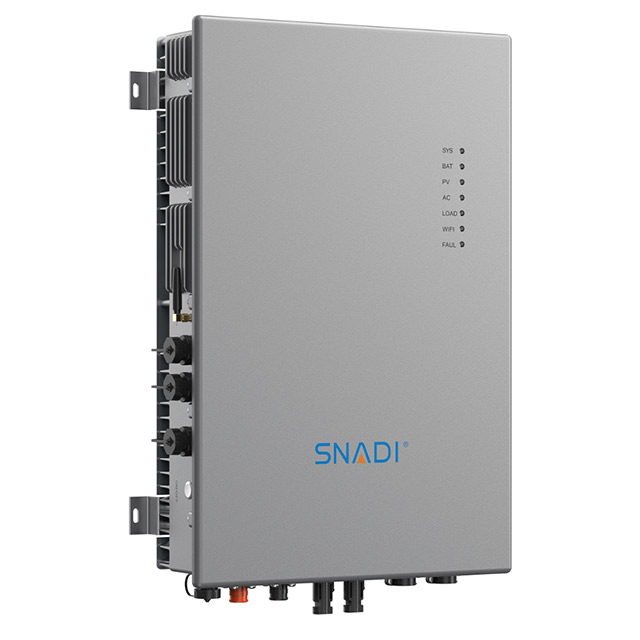

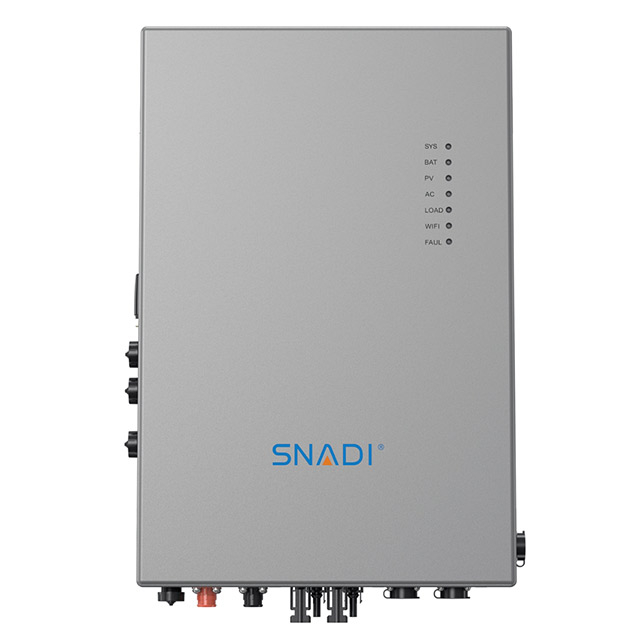

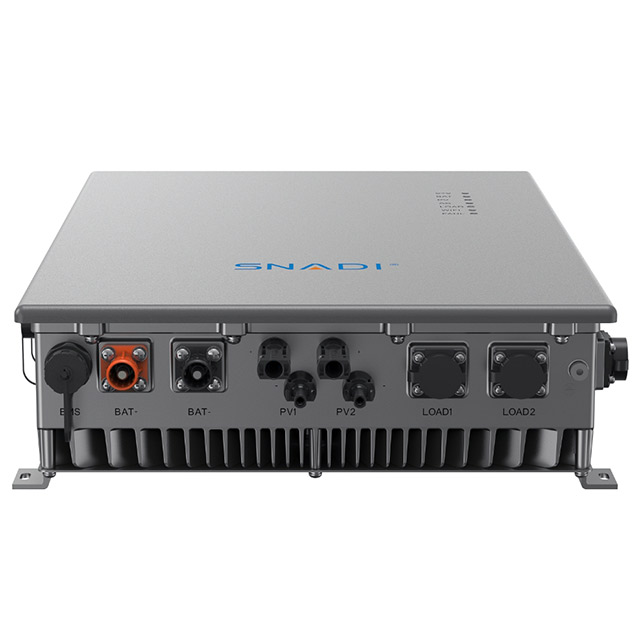

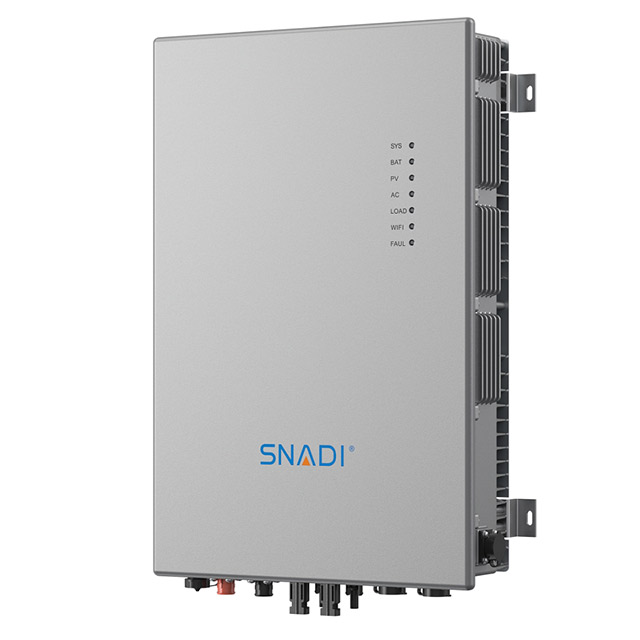

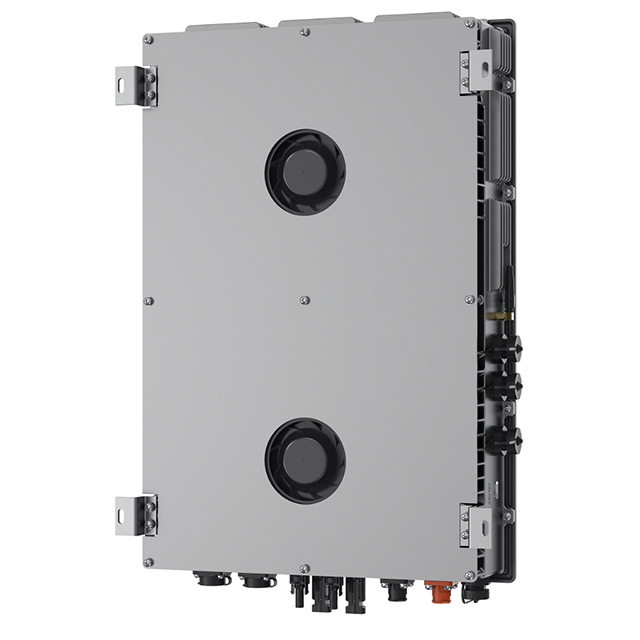

SNADI NKH IP65 Hybrid Solar Inverter supports on/off-grid use with 6000W PV input. Compatible with LiFePO4 batteries, mains or generators. Runs without battery, auto-restarts on AC return. Allows 10-unit parallel operation. Built for harsh environments with dust/waterproof design, smart protection, and optional WiFi monitoring — reliable, flexible, and easy to manage.
●Pure sine wave inverter (on/off grid)
●Max PV input 27A(6000W),500VDC
●Compatible work with LiFePO4 battery via RS485
●Compatible with mains voltage or generator power
●Can parallel 10units
●The automatic channel starts when the AC recovers
●Capable to work without battery
●Dustproof and waterproof for harsh environment
●Wifi remote monitoring optional
●Overload/Over temperature/shortcircuit protection
| Model | HY 6000W-IP65 | |
| Class Of Protection | IP65 | |
| Rated Power | 6000W | |
| PV Charge | Maximum PV Array Power | 8000W |
| MPPT Range Operating Voltage | 120~550VDC | |
| Maximum PV Array Open Circuit Voltage | 600VDC | |
| Maximum Charge Current | 100A | |
| Maximum Efficiency | 98% | |
| Rated Voltage | 380VDC | |
| Start-up Voltage | 150VDC | |
| MAX Input Voltage | 13A | |
| NO.Of MPP Trackers | 2 | |
| NO.Of Strings Per MPP Trackers | 1 | |
| Output (On-Grid) | Max AC Power Output To Utility Grid | 6000VA |
| Max AC Power From Utility Grid | 11000VA | |
| Nominal Grid Frequency | 50/60Hz | |
| Grid Voltage Range | 176~264VAC | |
| Nominal Grid Voltage | 230VAC | |
| Switch Time (Grid loss) | <10ms | |
| Output (Off-Grid) | Maximum AC Power | 6000W |
| Rated Frequency | 50/60Hz | |
| Frequency Accuracy | ±2% | |
| Voltage Level | 200/208/220/230/240VAC | |
| Maximum Output Current | 30A | |
| Overload Capacity | 105%~Load Ratios125%,10min;125%~Load Ratios150%,1min;Load Ratio>150%,10s | |
| Battery | Battery Type | Lead Acid & LFP |
| Voltage Range | 40~60VDC | |
| Maximum Charge And Discharge Current | 100A(Adjustable) | |
| Charging Method(Lead Acid) | 3 Stages adaptive with Maintenance | |
| Physical | Dimension DWH(mm) | 535*485*198.5 |
| Net Weight(KG) | 29 | |
| Communication Interface | Wi-Fi/R485/CAN/GPRS | |
| Opera Ting Environment | Humidity | 5~95% Relative Humidity |
| Operating Temperature | -25~60℃ (>45℃Derating) | |
| Maximum Working Altitude | >3000M Derating | |
